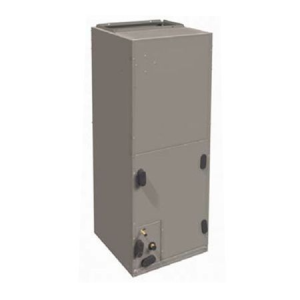

GrandeAire 2 Ton Multiposition Air Handler

Description

Multiposition Air Handler

• L = Aluminum Tube, Aluminum Fin Evaporator Coil
• M = Copper Tube, Aluminum Fin Evaporator Coil
• T = Tin Coated Copper Tube, Aluminum Fin Evaporator Coil

ALL MODELS

• 1-1/2 thru 5 tons
• Available for environmentally sound R-410A systems
• Factory installed piston metering device with Teflon ring on 1.5 – 4 ton sizes, TXV on 5 ton size
• Sweat connections
• Primary and secondary drain fittings
• Multiple electrical entry locations
• Time delay relay (TDR)
• Field installed heater packages from 5 kW – 30 kW available separately
• HUD approved for manufactured housing
• 208/230-1-60 supply voltage
• Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1.0 inch water column
• 1 inch thick insulation with R value of 4.2
• Filter (washable) available as accessory
• ECM 5-speed motor
• Multiposition installation – upflow or horizontal left standard, horizontal right with minor modification (field convertible to downflow with available accessory kit)
• Low voltage circuit protective fuse (3 amp) inline on wire harness
• No Heat (Plug) Kit factory installed

LIMITED WARRANTY*

• 5 year parts limited warranty

– With timely registration, an additional 5 year parts limited warranty
* For owner occupied, residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
